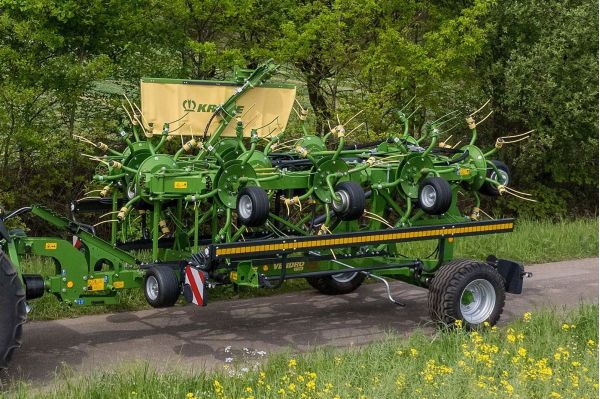

As standard, the Vendro C 1340 comes with a reversible drawbar and 40mm drawbar lug for top and bottom hitching or, optionally, it can be ordered with a K80 ball-head hitch or swinging drawbar. It also comes as standard with a two-point hitch and tension spring to provide load compensation ensuring safe driving in all conditions, even with small or light-weight tractors.
Twelve rotors of 1.5m diameter, each with six tine arms, provide a generous overlap, which allows for highly efficient tedding and turning on a working width of almost 13.4m. The OptiTurn rotor ensures the tedder remains at the optimum height even in rough ground; the rotor guide wheels run very close to the three-dimensionally curved OptiTurn tines to pick up the crop accurately, minimising losses and spreading evenly. The spreading angle can be variably set in four levels in a range of 13° to 19° depending on requirements. A steep spreading angle is used for intensive conditioning or a shallow angle is effective for gentle turning.
The desired working height can be easily adjusted via a crank handle directly at the machine. Or the optional hydraulic adjustment allows the operator to make the adjustment from the tractor cab. This ensures that the operator can react quickly and easily to changing conditions at any time. On request, the machine can be equipped with a border swath cloth mounted on the right side in direction of travel that is folded in and out hydraulically via the operation panel.
Folding the rotor booms in and out from transport into working position takes seconds. First, a double-acting electronic control unit moves the rotor booms to headland position. This hydraulic folding process is carried out by sequential control, avoiding improper operation and preventing the resulting damage to the machine. Then, a single-acting electronic control unit lowers the rotors to working position.
Another benefit of the Vendro C 1340 is the hydraulic relief of the transport axle, available on request or as standard on the Plus model. During work, the transport axle runs along on the ground very close to the operating range of the tines, guiding them over each ground contour. To avoid damage to the sward when navigating narrow curves, the transport axle can be relieved. This reduces the weight on the axle by means of a special hydraulic system. Ensuring the sward remains intact, and neither the contact to the ground nor the function as a front guide wheel for the tines is lost. This also guarantees high forage quality for following cuts.
Krone opts for a fully mechanical drive train, comprised of the main gearbox with integrated freewheel. In combination with the drive shafts, the maintenance-free Octo-Link finger coupling and the hermetically closed rotor gearboxes, provides maximum efficiency with low fuel consumption and minimum maintenance. Thanks to the lightweight components, the machine is very easy to pull without any compromise in terms of stability or functionality.
