The 2023 winter housing season will see the new 8200 model available. It has been redesigned from the ground up, but retains all the strength of the 7100 and 8100 models that the 8200 range replaces. The new 8200 line from Teagle includes two models:
- 8200 for feeding and bedding, available either mounted or trailed; and

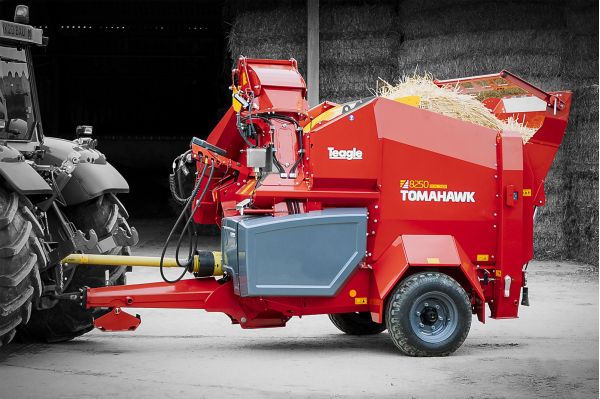

- 8250 for precision straw processing, also either mounted or trailed.
An updated Synchro control system in both variants offers the operator the ability to:
- Pause/resume the flow of material at the touch of a button;
- Adjust bale restraint position to optimise output with straw/silage;
- Simplify operation by electronically synchronising bed chain speed and bale restraint position via a single control; and
- Operate a loading setting, to prevent contact between the bale and the crossbeater on startup
All of the above are managed through Teagle’s tried and tested Bluetooth control desk that has been updated to include the new functions, and reconfigured to improve operator comfort.
Spread, shred, chop at the touch of a button
The unique 8250 Dual Chop design for processing short material has been substantially updated with a 40 per cent increase in the speed of the chopping system to provide a fine and consistent chop length, designed specifically to suit the needs of total mixed ration (TMR) and poultry/cubicle bedding applications. The blade beam can be disengaged to allow material to be spread without chopping, or engaged at the push of a button for short chop mode.
The 8200 feeding and bedding models also now benefit from the largest diameter crossbeater on the market to ensure smooth delivery of processed materials. Material then passes through an updated fan and swivel chute with improved material flow and blow distance. Hardox is now included as standard in the chute components.
A revised layout
A new monocoque body provides strength in the mounted versions, and has been designed for improved material containment and clean, safe operation with all horizontal surfaces removed. The bale chamber can accommodate round bales, either 1x2m or 2x1.5m, with capacity for full size rectangular bales up to 2.8m long. Bales can be self-loaded and retention is improved with a rigid bale beam at the rear of the tailgate.
All greasing points are easily accessible, with the recently updated BS EN703:2021 safety standards taken into account. A drop-down hatch at the rear of the machine allows for easy removal of stones.
Almost all components are now robot welded and a modular design ensures straightforward maintenance. The machine can be configured to European specifications, which ensures safe road use, according to Teagle.
