With the new 5ML Series, which includes the flagship 5130ML, John Deere says it has introduced its ‘most intelligent and powerful narrow tractors for use in high-value crops’, to date
To make working with specialty crops easier, the 5ML offers a comprehensive John Deere technology package for precision farming. A unique feature is the integrated AutoTrac guidance system, according to the company. The AutoTrac display has been integrated directly into the tractor’s dashboard, eliminating the need for additional activation or display.
This, the company says, saves additional costs. With its equipment, the 5ML makes it possible to combine different work steps. The integrated guidance system enables the driver to deliver a high quality of work even on long days. They can fully concentrate on the implements as the tractor itself stays on track.
Farmers now have to document their work processes in increasing detail, which means additional effort. With the optionally available Gen 4 display on the 5ML, every step of the tractor’s work can be easily documented and securely transferred to the John Deere Operations Centre, which is available free of charge. Here, all operations can be monitored, planned, and analysed, enabling the farmer to make informed agronomic decisions. With ‘1ClickGo AutoSetup’ from John Deere, settings for the documentation and execution of the work steps, such as an application rate for a crop protection measure, can be set up via the operations centre.
As soon as the tractor enters the respective field, the defined job appears on the display. All the driver has to do is confirm and start working. This helps save set-up time and ensures error-free documentation.
Strong
The John Deere PowerTech Plus engine in the new 5130 ML is a 4.5L four-cylinder with a solid torque rise of 30 per cent and a maximum output of 134hp. The mechanical PowerQuad Plus transmission has four of the optionally available Powr8 transmission eight power shiftable gears. When range shifting the matching powershift gear is automatically selected. The 5ML not only impresses with its engine power, but also with its hydraulic output of 117L/min, according to John Deere.
This allows implements with high hydraulic power requirements to be connected directly to the tractor hydraulics without the need for an external PTO-driven hydraulic pump. Furthermore, a combination of different applications is possible. Time can be saved by, for example, pruning trees and tilling the soil at the same time. In addition, the tractor is ready for use with front loaders.
A special feature is the 5ML’s lift capacity, which totals 4,900kg at the ball ends of the rear hydraulics. At the front hydraulics it is 2,900kg, with a payload of 3,500kg. Combining a high payload with maximum lifting capacity enables the attachment of large implements, which increases the effectiveness and productivity.
Furthermore, the 5ML stands out in terms of its rugged design. Fenders, fuel tank and rear taillight enclosure, as well as the door seals, are made of steel and are therefore particularly robust. Smooth edges in the design ensure that crops are not damaged when driving through narrow stands.
Safety and comfort

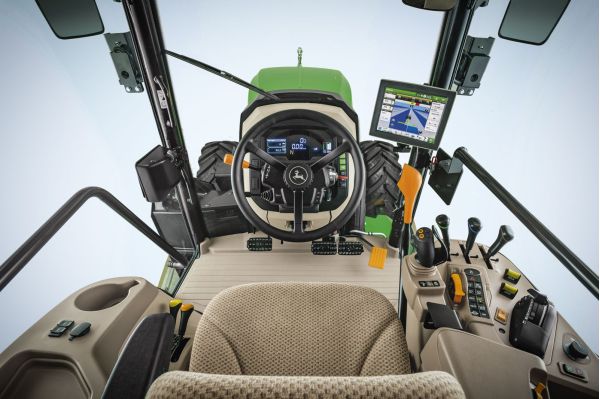

The 5ML’s cab is equipped with an electronic joystick and a large LCD display in the dashboard. This provides an excellent overview of the tractor settings and increases operator comfort, says John Deere. The electronic joystick makes it easy and convenient to control implements. With the iTec headland management function, the driver is noticeably relieved by the automation of the work processes when turning at the headland. The category 4 cab filter system (according to EN 15695) integrated into the roof of the driver’s cab is available as an option and provides protection against dust, aerosols and vapours that are hazardous to health.
